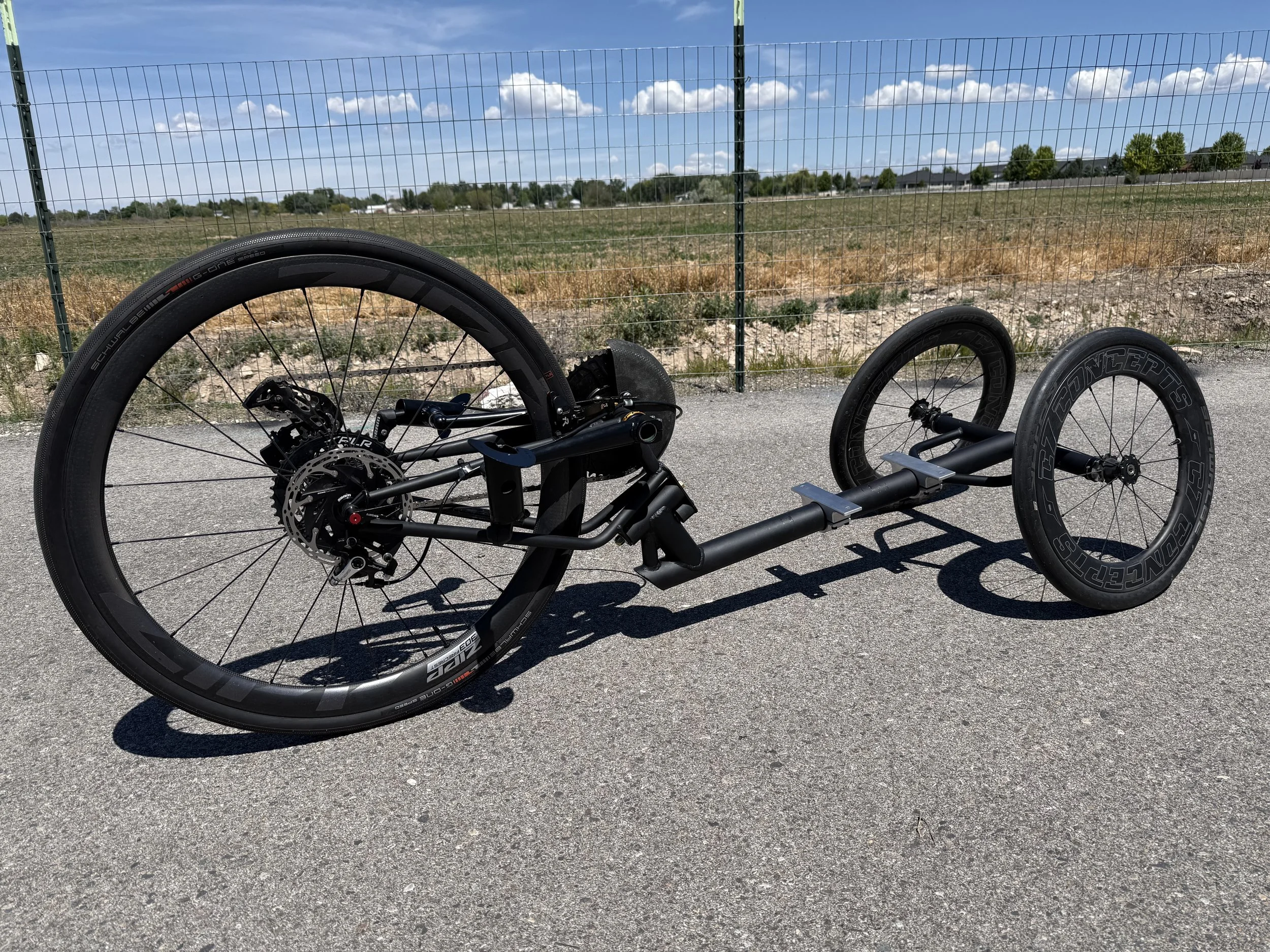

Kneeling-style handcycle frame designed for attachment of a custom carbon-fiber/plastic bucket seat. Available in Road and Gravel configurations.

ROAD IS $1,000.00 MORE THAN GRAVEL DUE TO COST OF REAR 20” ROAD WHEELS FROM C7 WITH 1/2” THRU AXLES.

ROAD CONFIGURATION USES ROAD TIRES AND HAS A 50T CHAINRING.

GRAVEL CONFIGURATION USES REAR 20” DUROC 30 WHEELS WITH 15MM THRU AXLES.

GRAVEL CONFIGURATION USES GRAVEL TIRES AND HAS A 48T CHAINRING.

Key features

• Fork accommodates tires up to 38 mm and uses SRAM’s Universal Derailleur Hanger.

• Front wheel: 700c. Rear wheel options: 20" (406) or 700c.

• Standard braking: hydraulic disc brake with backup rim brake.

• Quarq 5×110 Power Meter comes standard.

• Includes draft bar.

• Drivetrain: 12-speed 1x SRAM electronic shifting system. Gearing can be specified at order to match your intended terrain.

• Fork material: steel.

• Rear frame material: aluminum.

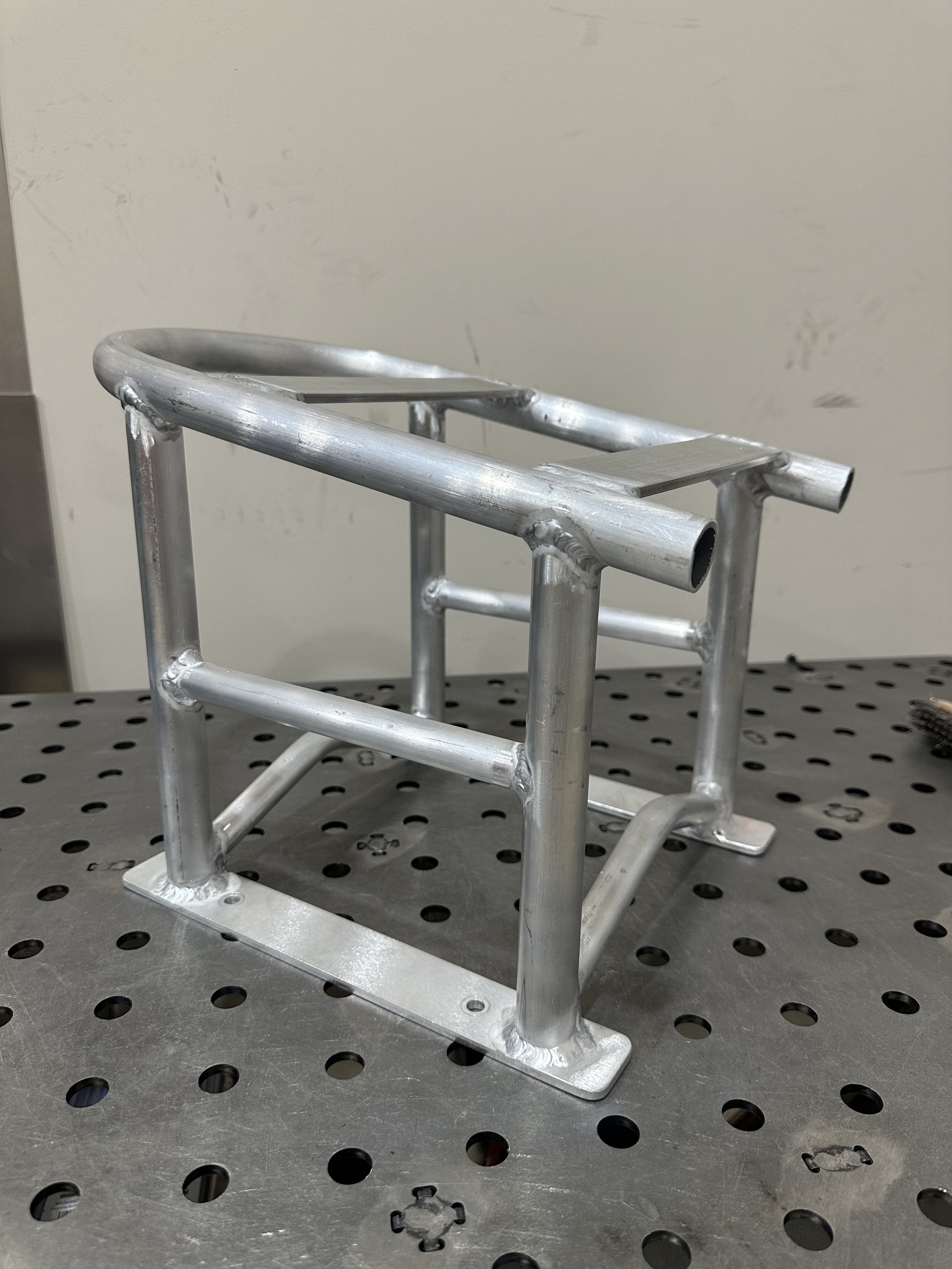

• Seat mounting: seat brackets for a bucket seat are included; the bucket seat itself is not included and must be provided by the customer.

Notes

• Price shown includes all components required to make the handcycle operational except for the bucket seat.

• Product images are examples of possible builds and may not represent your specific configuration.

• This is a custom-made product. All sales are final; no refunds or returns after purchase.

If you would like to specify gearing, materials, or any custom requirements, please provide details at the time of order so we can ensure the build matches your needs.
